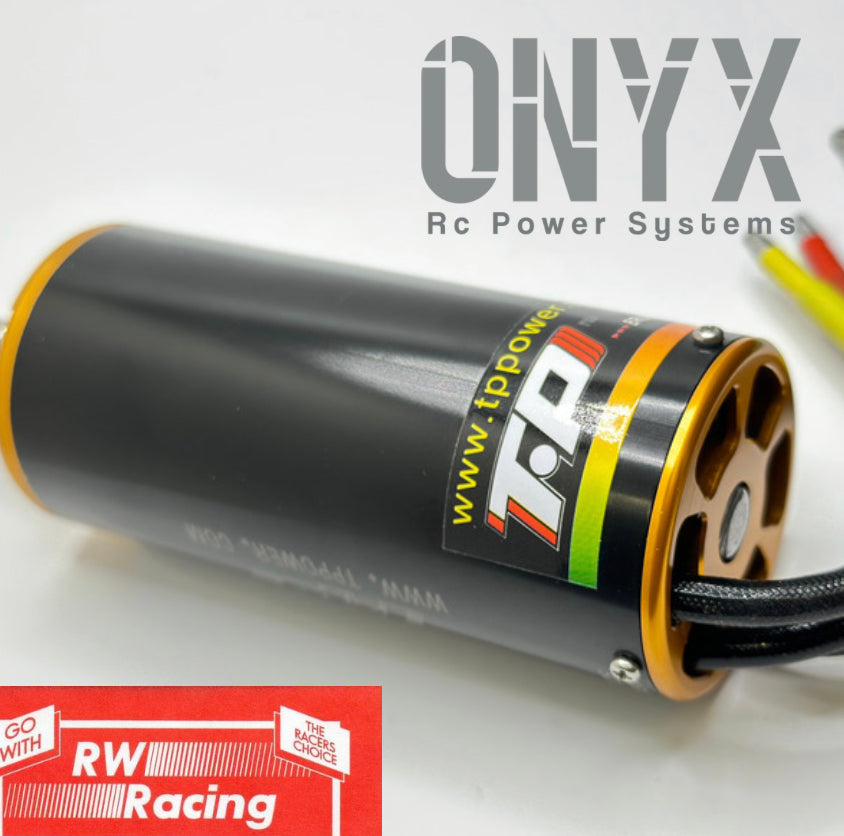

TP4070SVM 2240kv

This motor is specially designed for Speed Run competitions! no warranty provided

Please do not keep running the motor at the max power or max RPM more than 10 seconds or this will cause damage to the motor esc and batteries. gear accordingly, start with a small pinion and spur.

SVM Increased Torque.

Turns: 4D
KV: 2240 KV
Max Amps (A): 264 A
Max Volt (V): 32.8 V
Continuous Power (W): 5500 W
Max Power (W): 9500 W
Max RPM: 73K
Rm: 0.0023
No-Load Current (A):  5.4

This motor is a vented {open} housing.

Shaft Diameter (mm): 8 mm
Flat spot on the shaft?: Yes
Output shaft length: 18-20 mm
Diameter x Length (mm): 40 mm x 107 mm
Bolt Pattern (mm): 4 x M3 x 25 mm or 4 x M4 x 25 mm
Cable: 86-91 mm
Weight (g): 651-658 g
Poles: 4P

any further information require please email us.
