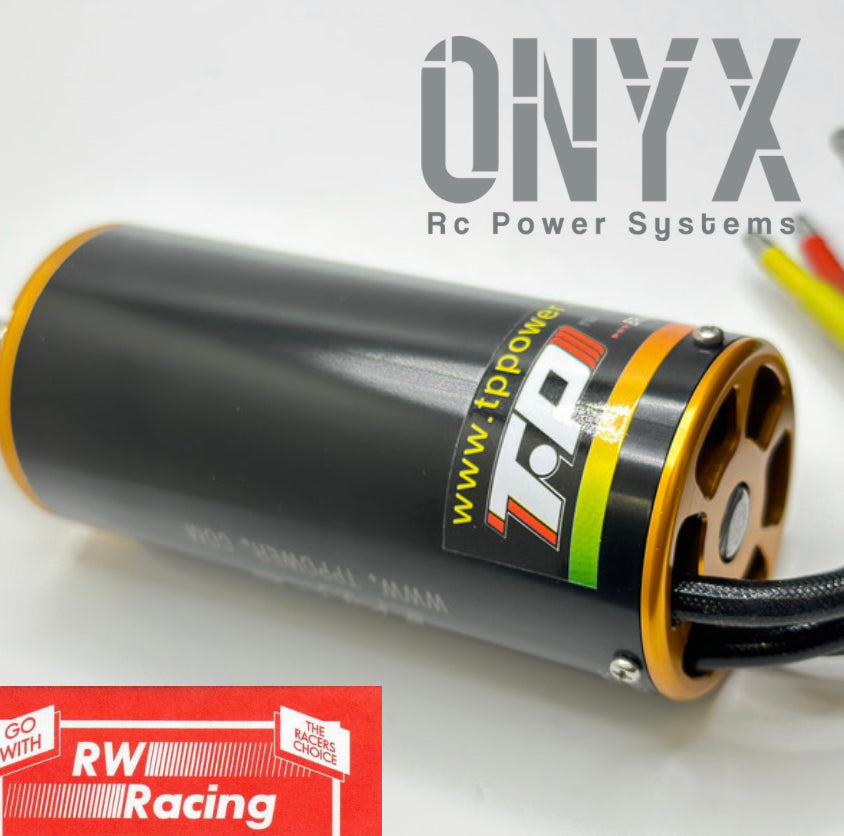

Tp4050 cm 6s-8s

This motor is specially designed for Speed-Run competitions! It has no warranty!

Please do not keep running the motor at the max power or max RPM more than 10 seconds!​

More details needed please contact us.

Parameters:

KV: 2300 KV
Max Amps (A): 250 A
Max Volt (V): 8s Lipo
Continuous Power (W): 2500 W
Max Power (W): 5100 W
Max RPM: 80K
Rm: 0.0042

This as open caps (vented)
Shaft Diameter (mm): 5 mm
Flat spot on the shaft?: Yes (13 mm)
Output shaft length: 19-21 mm
Diameter x Length (mm): 40 mm x 82 mm
Bolt Pattern (mm): 4 x M4 x 25 mm
Cable: 92-96 mm
Weight (g): 472-477 g
Poles: 4P
