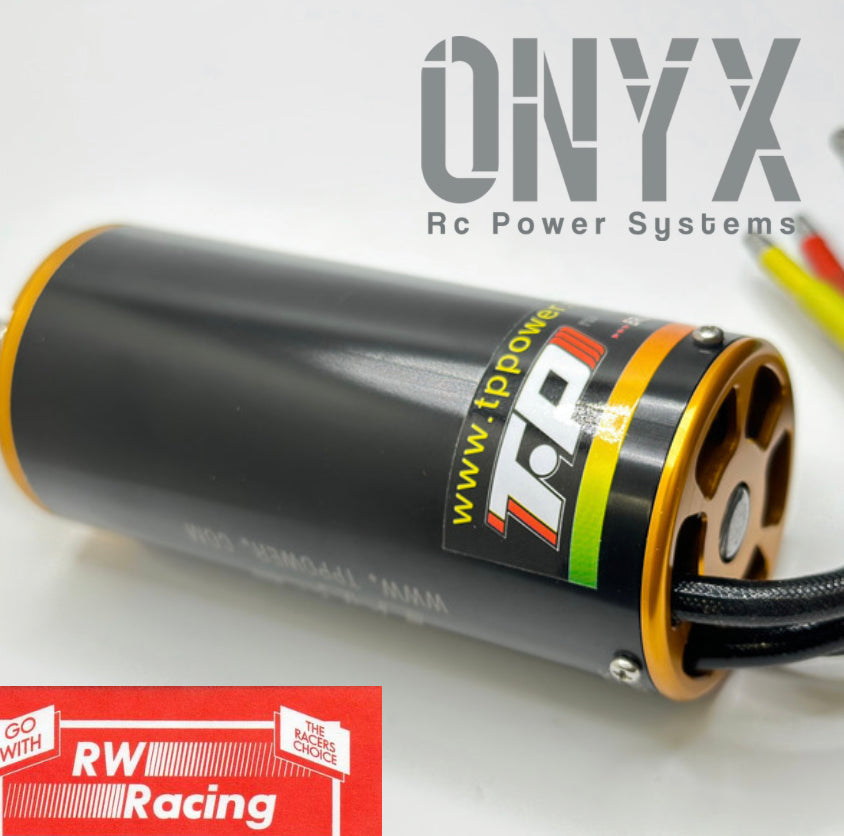

TP 4070cm 2200kv 6s-8s

This motor is specially designed for Speed Run competitions! no warranty provided

Please do not keep running the motor at the max power or max RPM more than 10 seconds or this will cause damage to the motor esc and batteries. gear accordingly, start with a small pinion and spur.

KV: 2200 KV
Max Amps (A): 259A
Max Volt (V): 8s Lipo
Continuous Power (W): 5000 W
Max Power (W): 9000 W
Max RPM: 75k
Shaft Diameter (mm): 8 mm

This motor is a vented {open} housing.
Flat spot on the shaft?: Yes (13 mm)
Output shaft length: 21 mm
Diameter x Length (mm): 40 mm x 92 mm
Bolt Pattern (mm): 4 x M3 x 25 mm or 4 x M4 x 25 mm
Cable: 91 mm
Weight (g): 538 g
Poles: 4P
This motor is a vented {open} housing.

Any further information required email us.
