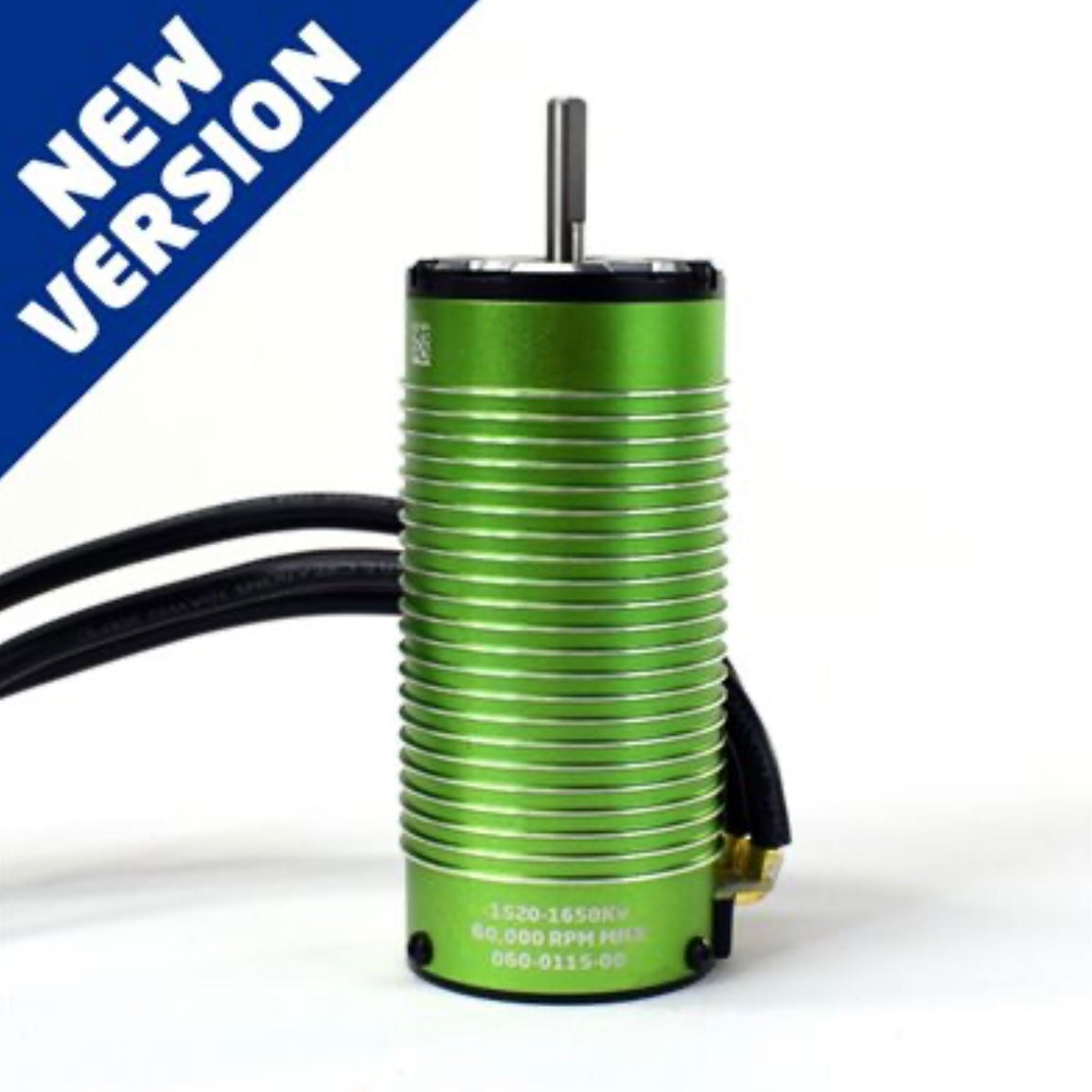

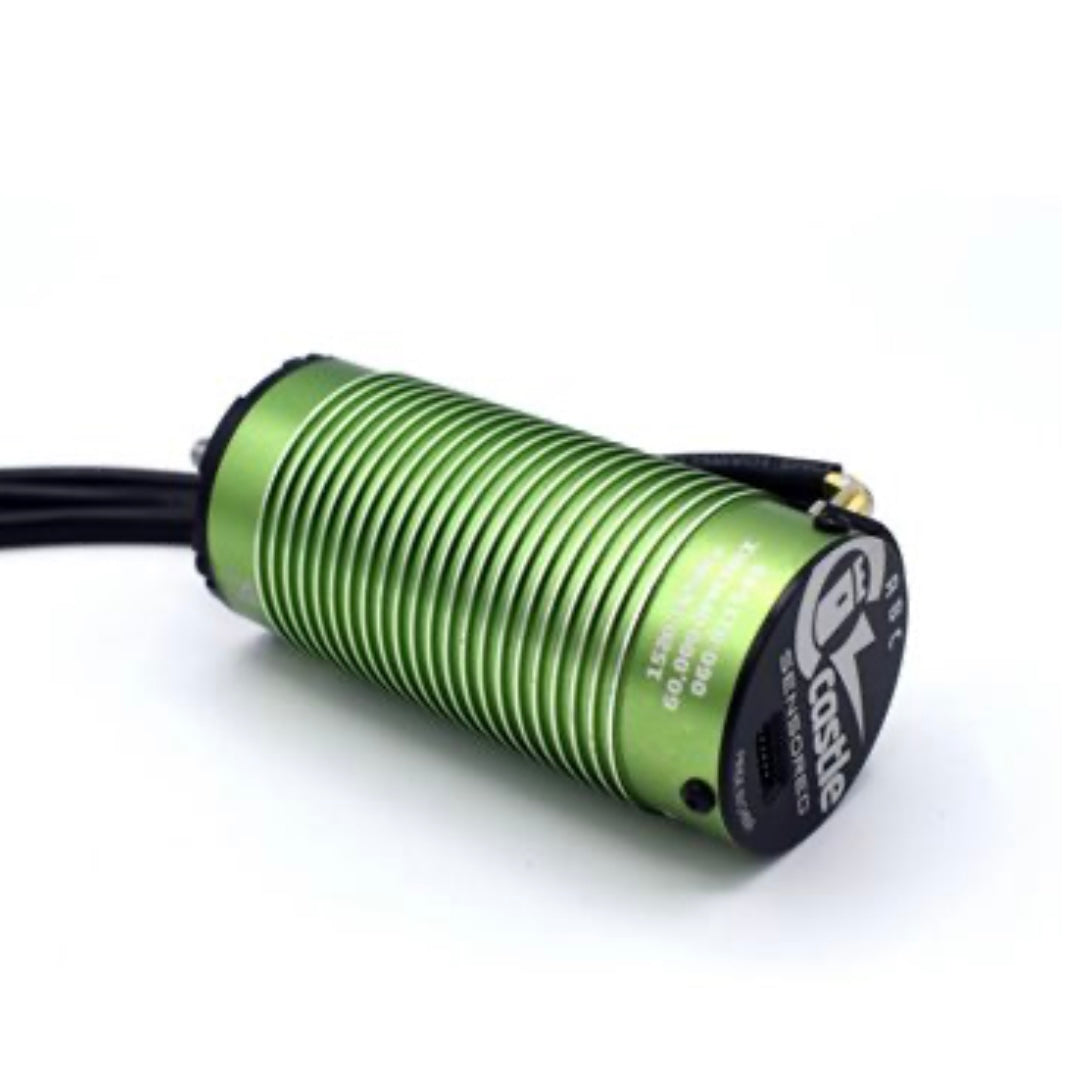

CASTLE 1520 SENSORED MOTOR-1650KV V2

CASTLE 1520 SENSORED MOTOR-1650KV V2

£194.95
£194.95 £219.95
Tax included.
MOTOR  APPLICATION VEHICLE EXAMPLES
1520-1650Kv V2    Ideal for use in 1/6, 1/7 and 1/8 scale vehicles
weighing up to 18 lbs. and running up to 8s LiPo
 Losi LST2-E™; Arrma™: Limitless™, Typhon™ 6s, Kraton 6s™,Kraton EXB™, Infraction™ Felony™ 6s,
Notorious 6s™,Talion™ 6s; Kyosho Inferno™, Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™;
Redcat Shredder™ Note: "Recommendations basedon vehicle weight and motor capabilities.
Verify motor fitment, may require optional motor mount."



Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products is meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1520-1650Kv V2. The rotor and stator have been completely redesigned to improve magnetic flux. This results in higher efficiency, smoother start-up, reduced temperatures, and longer run times!

MOTOR FEATURES:

  • Input Voltage range: 3s-8s LiPo
  • Redesigned rotor and stator assemblies.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • 10 AWG, High-Strand-Count Silicone-Insulated Wire w/6.5mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator

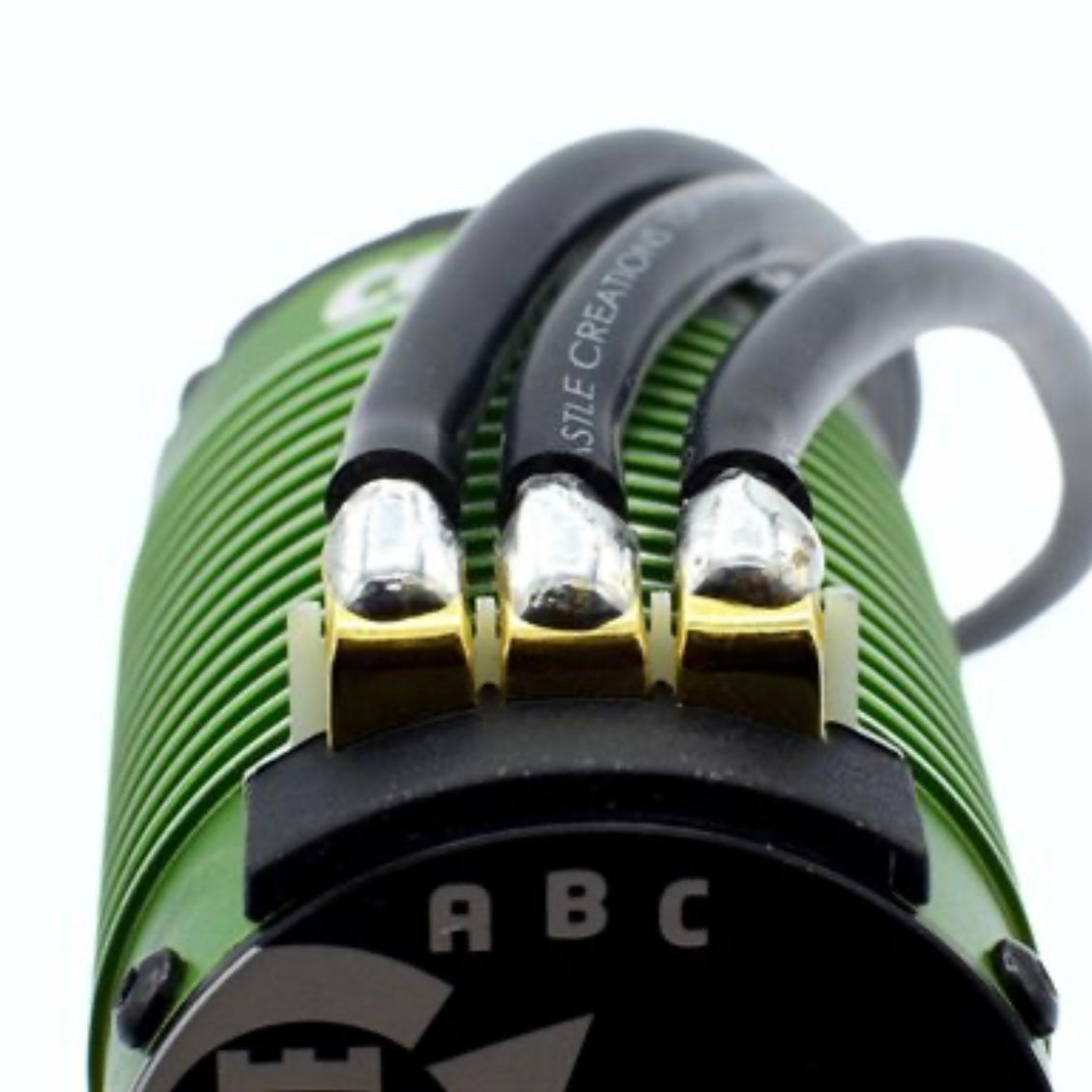

  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminum CNC Machines Front/Rear End bell
  • Proudly Designed and Supported in Kansas, USA.
  • Backed by Castle Creations' 1-YEAR WARRANTY
